Motone Rear Wiring Loom - Plug and Play - Bobber/Scrambler 1200/Speed Master

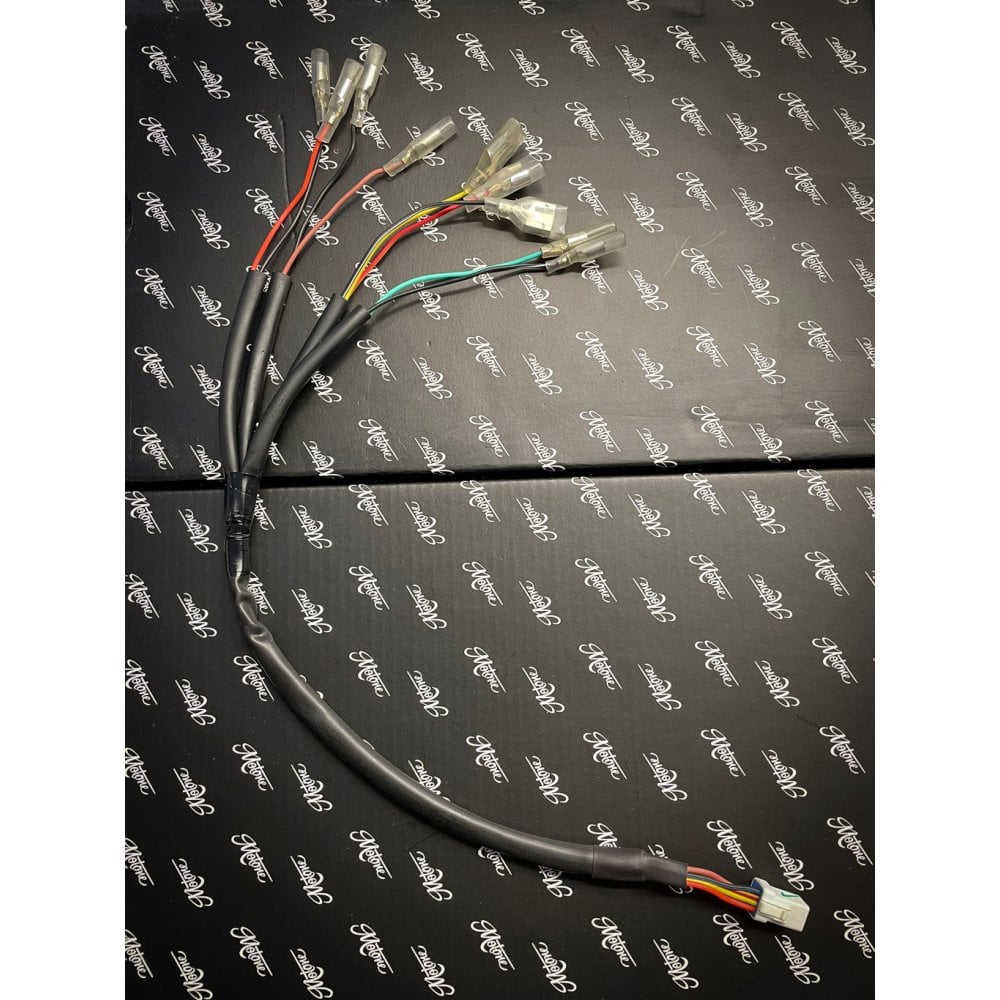

Plug and Play Rear wiring Loom - this connects directly into the rear harness plug of your bike and allows you to fit after market Taillights, Indicators, Accessories etc without having to chop into the stock loom

This Loom our part code DDM016 fits

All Years Triumph Bobber

All Years Speedmaster 1200

All Years Scrambler 1200

Note that his loom contains a resistor to stop the issue causing engine warning light when fitting aftermarket Tail lights.

Wired as Follows

Orange - R - is RHS Indicator

Brown - L - is LHS Indicator

As part of the T (Tail light) Section we have YELLOW as the Running Light, RED as the Brake Light as well as associated Earths for each of the above

The Tail light connectors all have double spades in the case that you are running for example our Pico 3in1 Rear lights which means you essentially have 2 tail lights (on on each side)

There is also a spare A Auxiliary Wire in Green which has its own earth, you can either use this to power an external device or you can use it to power a Number Plate Illumination Light if you are running a side mount plate kit which doesn't have a tail light with a license plate illumination light section of its own.

And remember the top 3 electrical faults are 1 Bad Earth, 2 Bad Earth, 3 Bad Earth.  Always check fuse box - and for belt and braces you may want to disconnect first battery before plugging in new parts...

Our Adapter comes both colour and letter coded with each function banded together and labelled for easy use.

NOTE : MOTONE LOOM INCLUDES DIODE INLINE TO PREVENT ECU WARNING LIGHT ERROR ON NON-TRIUMPH LIGHTS

It also utilises all 6 of the stock loom plugs giving you an extra live connector to run any auxiliary devices

T : Tail light -  (CAN CONNECT TAIL LIGHT and 2 MULTI FUNCTION 3in1s at the same time)

RED - BRAKE Light [TRIPLE SPADE CONNECTORS]

YELLOW - RUNNING Light  [TRIPLE SPADE CONNECTORS]

BLACK - Earth [TRIPLE SPADE CONNECTORS]

L : Left Indicator/Turn Signal

BROWN - LHS Signal

BLACK - Earth

R : Right Indicator/Turn Signal

ORANGE - RHS Signal

BLACK - Earth

A : Auxiliary Live

GREEN - AUX

BLACK - Earth

DDM021
