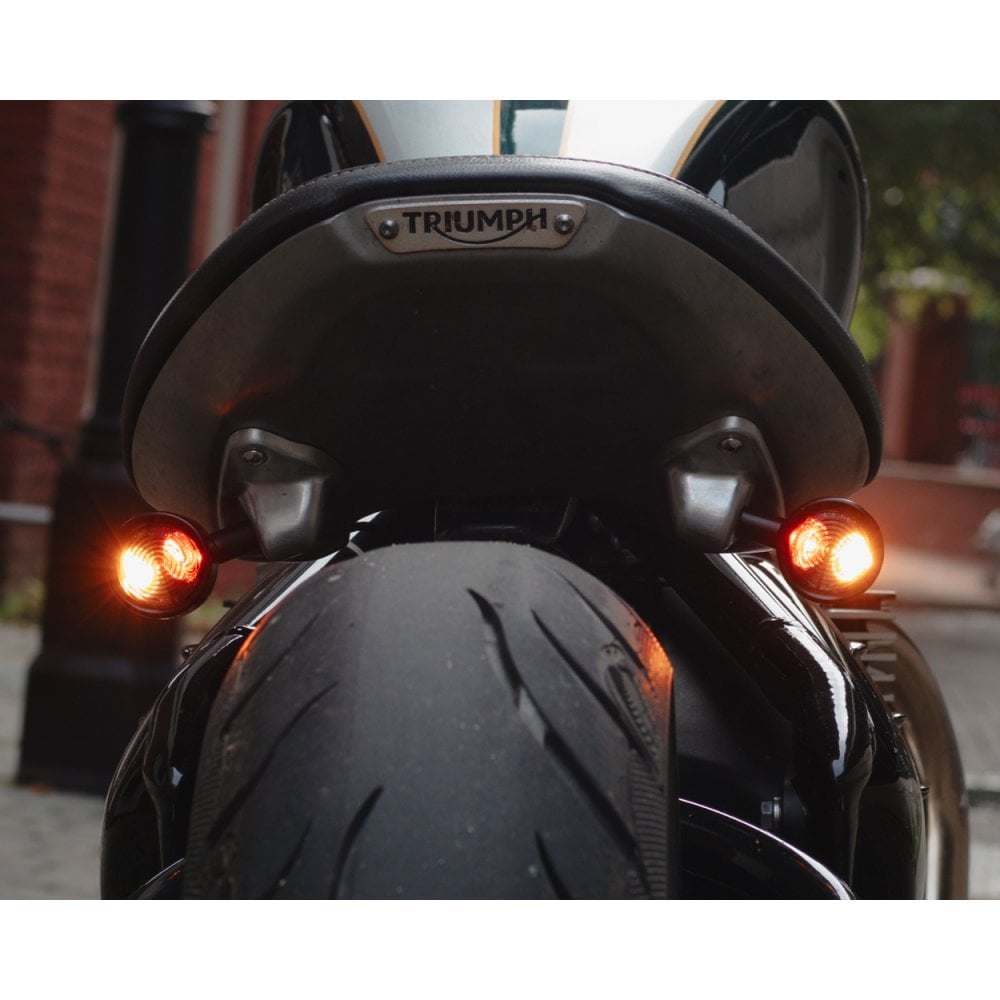

MOTONE ICON MULTI LED 3 IN 1 TAILLIGHT/BRAKE/INDICATORS TURN Signals - PAIR - BLACK

MOTONE ICON MULTI LED 3in1 :

1. TURN SIGNAL (INDICATORS)
2. BRAKE LIGHT
3. RUNNING LIGHT (TAIL LIGHT)

UNIT HERE : PAIR [2 LIGHTS]

• ECE R148 - LAB TESTED FULLY COMPLIANT ROAD LEGAL
• CUSTOM PCB
• SMOKED LENS
• FULL METAL JACKET - ALUMINIUM HOUSING
• ORSAM SMD LED
• BRAIDED CABLES TERMINATING IN 3.9MM BULLET CONNECTORS
• WATERPROOF
• RUBBER BOOT CABLE TIDY
• INPUT : DC 13.5 V

SPECS

• Indicator Light Power : 3.4 W
• Running Light Power : 2.0 W
• Brake Light Power : 4.7 W
• PMMA LENS (TIR Optical Lense tech)
• SIZE W 44 x H 87.5 x D 64.6 mm
• MOUNTED ONTO A M8 THREAD

There are 4 Wires exiting each Light Unit - Functionality is as follows :

RED - BRAKE LIGHT

YELLOW - INDICATOR

BROWN - RUNNING LIGHT

BLACK - EARTH NEUTRAL

MFX002

Combine with various brackets and adapters we make to fit anywhere on your bike we are working on more options all the time

• TRILINE  Brackets to mount to Rear Shock
• CLAMPIT Brackets to mount to front fork 41mm (other sizes also coming)
• Billet Adapter Brackets  mount M8 Indicators such as the PICO direct to stock Triumph Indicator position (2016 and up bikes)
• AJAX - Designed specifically for the Triumph Bobber these brackets allow you to fit signals onto the rear of the bike using the airbox bolts
• Number Plate Brackets - Adapter Brackets that allow the lights to be fit direct to your rear number plate bracket without needing to drill any holes etc
• Under Seat Brackets LC Triumph - Use the bolt holes under the rear of the seat to fit Indicators towards rear of frame - Liquid Cooled Bonneville so 2016 to 2025+)
• Under Seat Bracket AC Triumph - Under seat brackets for the aircooled (2001-2015) Bonnevilles
• Boomerang Bracket - fits on the bottom yoke suitable for the Street Twin/Speed Twin 900

Wiring Adapters

Please note if you have one of our tail tidies or rear loom adapters they would already terminate in a 3.9mm Bullet so plug and play from there one

Each Light Unit has 4 Wires that terminate in a standard Japanese spec 3.9mm Bullet - The Red wire is the Brake Light, the Yellow wire is the Running Light, the Brown Wire is the Indicator Light and the Black is the Earth/Neutral

If you want to see a wiring adapter/bracket combo for your bike please nag us and we will do our best to make it

We have a Wiring Loom adapter for the Triumph Bobber / Scrambler 1200 that can be run directly with these MULTI 3in1 Indicators available here part code DDM016    as well you if you have a 2016 to now T100/T120/Street Scrambler/Street Twin/Speed Twin 900/Speed Twin 1200 Eur4 they all use DDM021
