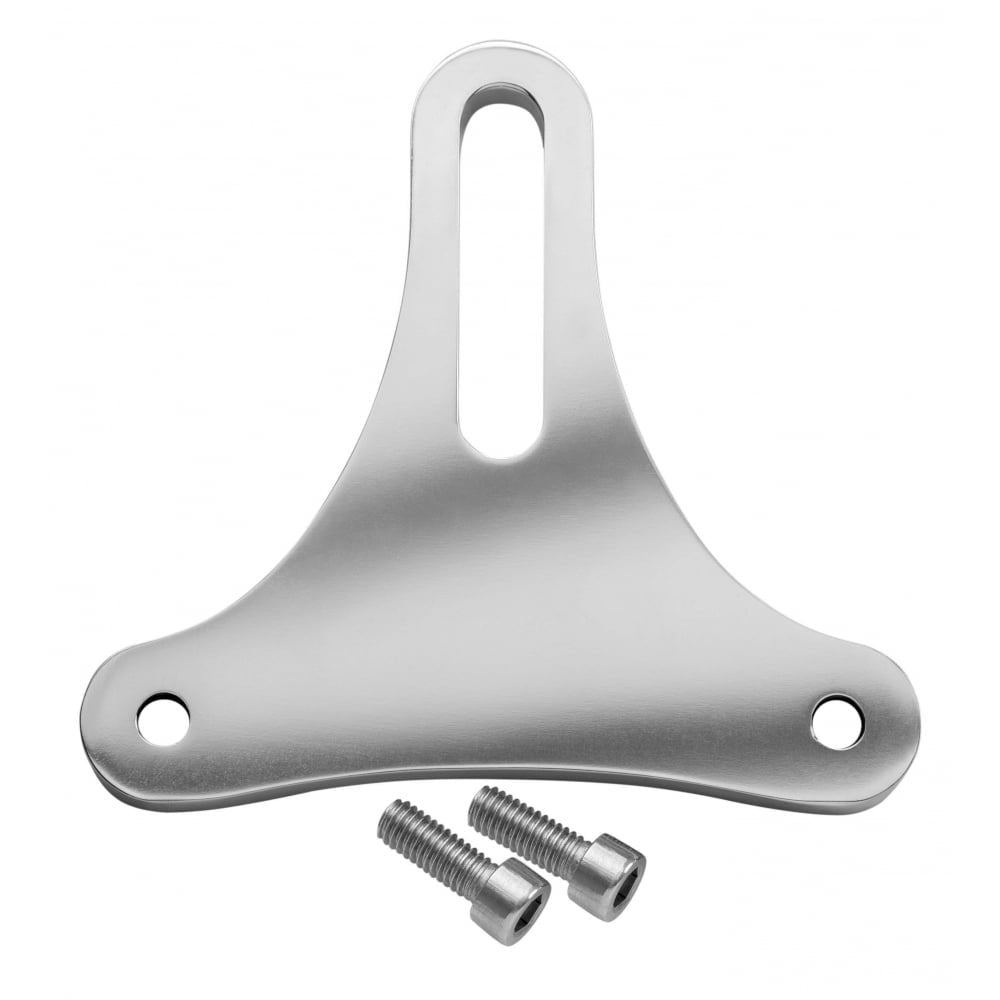

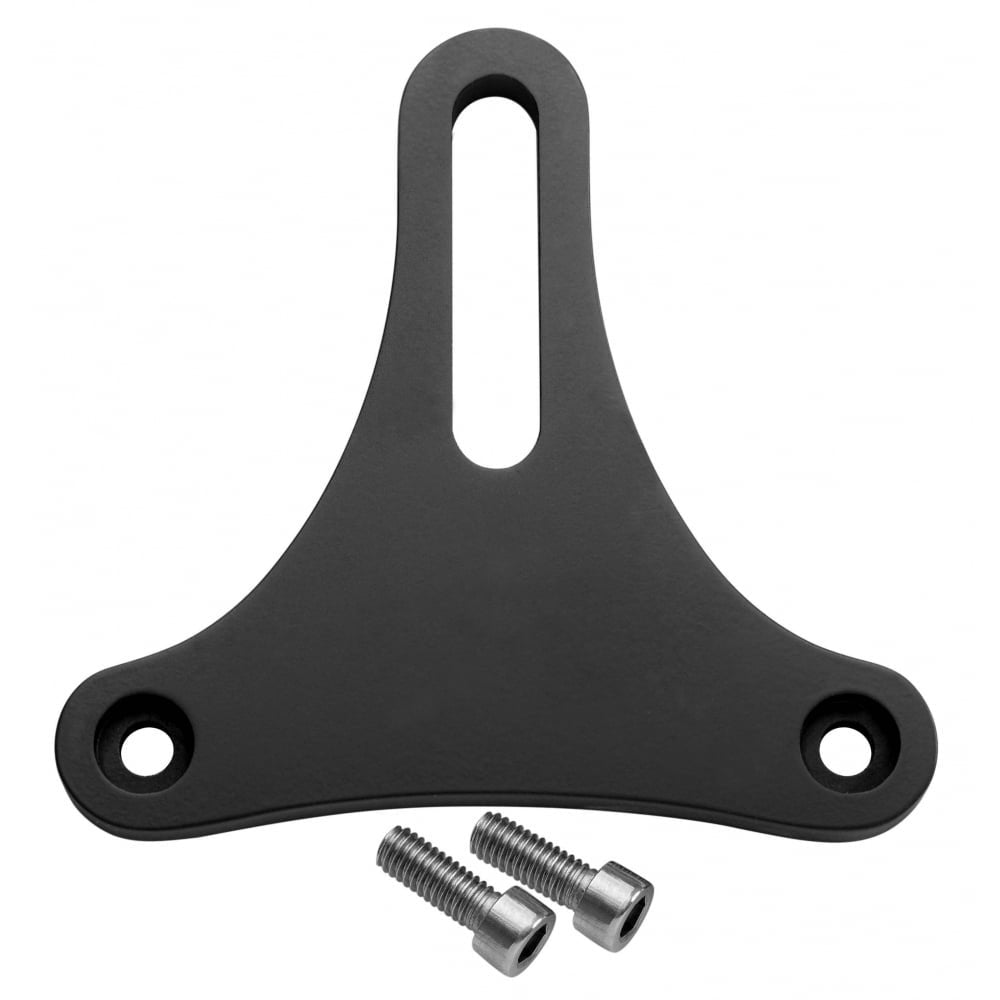

Bates Style Bottom Mount Headlight Bracket

Bates Style Bottom Mount Headlight Bracket


Custom CNC milled from aviation grade billet 6061t aluminum.

Includes bolts as pictured.

Allows you to fit a bates style or any other bottom mount headlight to your bonnie without any drilling.

Motone made this version with a slotted vertical hole, allowing precise adjustable fitment of the headlight on the vertical axis so you can properly line it up with the tank and the lines on the rest of the bike.

Headlight mount slotted hole is machined to take a bates light with 10mm thread.

Bracket mounts in place of where the stock regulator sits so no drilling required to fit.

Regulator also needs to be relocated to the frame rails or elsewhere - Motone also make a bracket for this.

For those wanting to use the part for a custom application (non-triumph) the distance between the 2 slotted horizontal bolt holes center to center is 85mm (3.34 inches)

Bracket Suitable for use with all the air cooled Triumph Twins 2001-2015 so T100, Bonneville, Scrambler, Thruxton, Mag Wheel SE etc.

The bracket also works some of the liquid cooled Twins ie the new T100, T120, Street Twin. Street Cup, Street Scrambler
