Joker Machine LED Lucas Style Taillight Assembly

Joker Machine LED Lucas Style Taillight Assembly

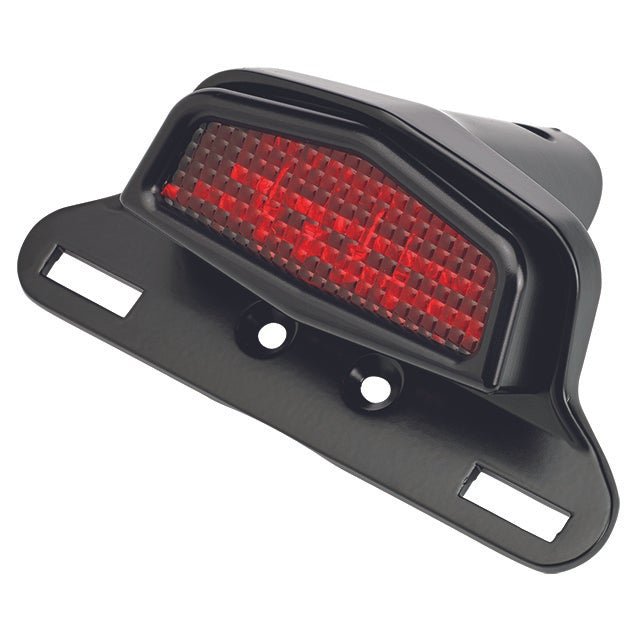

Trick-out your bike with one of these all billet aluminum "LUCAS" styled LED tailight assemblies!


  • Classic "Retro" styling with state-of-the-art lighting technology, due to our high intensity 40 L.E.D. light cluster inside of a 100% CNC machined housing and back plate unit.

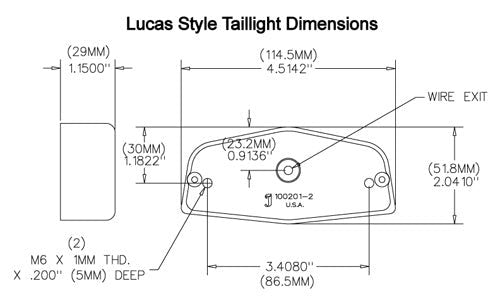

  • Super compact dimensions are: 1.150" (29.MM) thick, 4.500" (114.5MM) long, 2.041" (51.8MM) tall.
  • High quality CNC machined prismatic Polycarbonate lenses, top and bottom for excellent light disbursement.
  • Available in our "HARD BLACK" finish.
  • These units can be used in a wide array of applications - mounts on a flat surface, fender, bracket, or virtually anything you want! Simple 3 wire installation!
  • Has 6MM tapped mounting holes on the backplate that mounts directly onto the popular "Dixie International" or "Emgo" cast fender mount assembly found at many motorcycle shops.

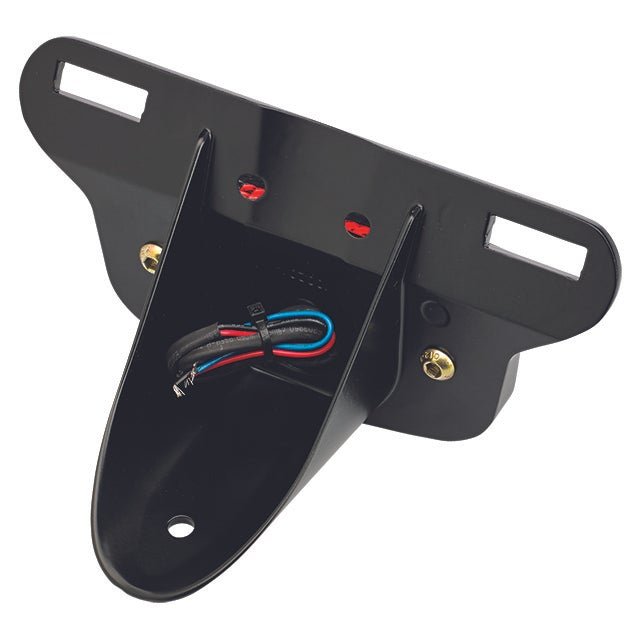

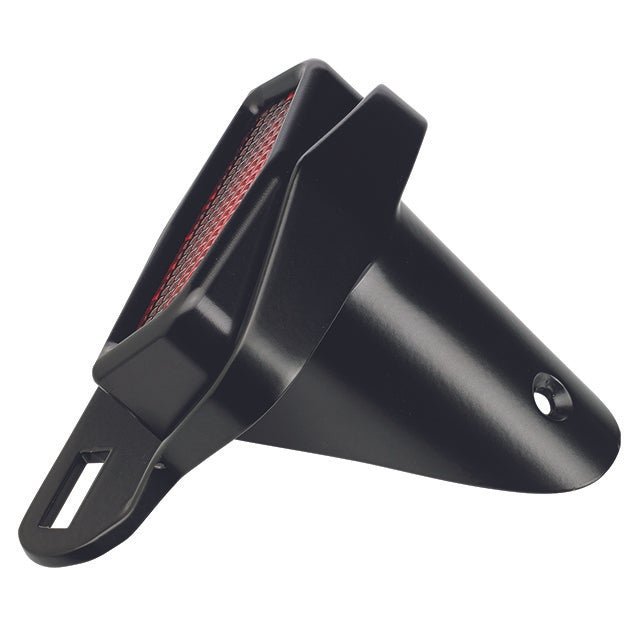

License and Taillight Bracket

  • Lusas style taillight bracket is available in semi-gloss black.
  • Will work with original incandescent taillight housing or Joker Machine's 09-570B taillight assemly.
  • Contact Joker Machine for incandescent taillight housings.
